Elastic rubber wheel with aluminium centre.

Tipo ruota: I

The special rubber ring compound, hardness 68 +/- 3 Shore A, gives the wheel a high elasticity, which guarantees superior performance, even in the presence of obstacles and uneven floors. Good vibration absorption. The high load capacity is given by the wheel body which is produced in die-cast aluminium. The sliding occurs on two ball bearings housed in calibrated seats, which ensure maximum efficiency during handling.

Sliding

Balls bearing

Balls bearing

Portata

180 ÷ 500

Temperatura

-20°C ÷ +70°C

Questa ruota è compatibile con questi pavimenti:

Tile

Tile

esin cement

esin cement

Slatted floor

Slatted floor

Asphalt floor

Asphalt floor

Dirt floors

Dirt floors

Floor with chips

Floor with chips


SF

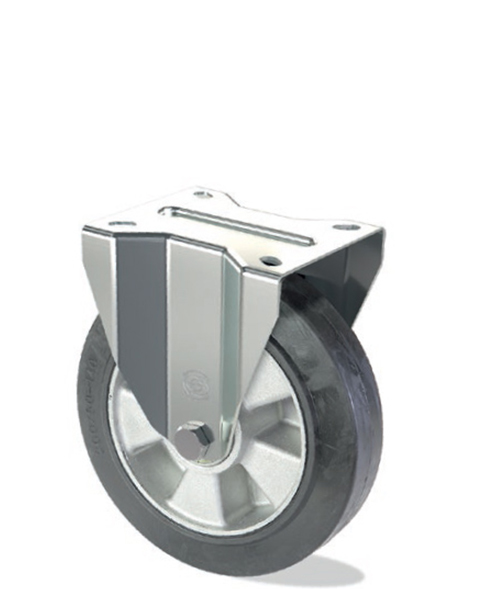

Elastic rubber wheel with aluminium centre. Fixed bracket type S15, made of heavy pressed steel, zinc plated.

Seleziona una delle seguenti varianti per creare il codice del prodotto

 DiametersWheel diameter - Wheel diameterBand width - Band widthTotal height - Total heightPlate dimensions - Plate dimensionsPlate holes distance - Plate holes distancePlate holes diameter - Plate holes diameterFlow Flow - Flow FlowOffset - OffsetWeight - WeightFront brake lever dimensions - Front brake lever dimensionsRear brake lever dimensions - Rear brake lever dimensionsDownload
100x4010040135100x8580x6010,5180361,315-117
125x4012540168135x110105x8012,5200602,170150117
125x5012550168135x110105x8012,5225602,270150117
160x5016050208140x110105x8012,5300652,870160117
180x5018050228140x110105x8012,5350653,660160117
200x5020050252140x110105x8012,5400653,900160117
250x5025050310140x110105x8014,5500855,860-117
Crea il codice articolo
Il codice del prodotto è:
