Elastic rubber wheel with aluminium centre.

Tipo ruota: I

The special rubber ring compound, hardness 68 +/- 3 Shore A, gives the wheel a high elasticity, which guarantees superior performance, even in the presence of obstacles and uneven floors. Good vibration absorption. The high load capacity is given by the wheel body which is produced in die-cast aluminium. The sliding occurs on two ball bearings housed in calibrated seats, which ensure maximum efficiency during handling.

Sliding

Balls bearing

Balls bearing

Portata

180 ÷ 500

Temperatura

-20°C ÷ +70°C

Questa ruota è compatibile con questi pavimenti:

Tile

Tile

esin cement

esin cement

Slatted floor

Slatted floor

Asphalt floor

Asphalt floor

Dirt floors

Dirt floors

Floor with chips

Floor with chips


GV

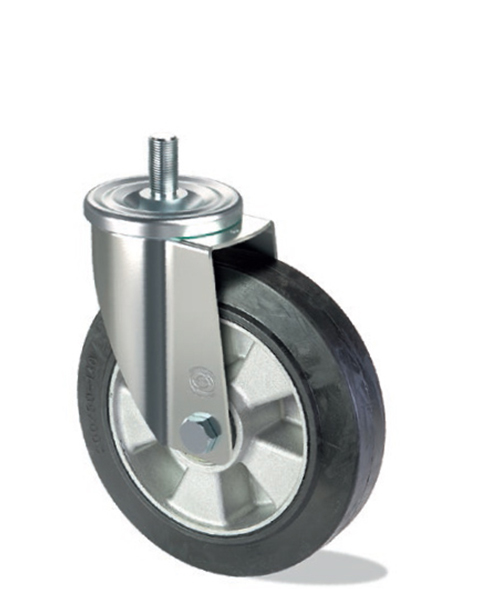

Elastic rubber wheel with aluminium centre. Swivel bracket type S10 with screw, made of pressed steel, zinc plated, double ball bearing swivel head.

Seleziona una delle seguenti varianti per creare il codice del prodotto

 DiametersWheel diameter - Wheel diameterBand width - Band widthTotal height - Total heightPlate dimensions - Plate dimensionsPlate holes distance - Plate holes distancePlate holes diameter - Plate holes diameterScrew dimensions - Screw dimensionsScrew hole diameter - Screw hole diameterDimensions of the shank - Dimensions of the shankFlow Flow - Flow FlowOffset - OffsetWeight - WeightFront brake lever dimensions - Front brake lever dimensionsRear brake lever dimensions - Rear brake lever dimensionsDownload
100x4010040128100x8580x608,510/12x5010-1222x50180381,060115-
125x4012540155100x8580x608,510/12x5010-1222x50200451,325115-
125x5012550156140x110105x8010,516x501622x50300551,425150-
160x5016050197140x110105x8010,516x501622x50300552,775150-
180x5018050225140x110105x8010,516x501622x50300553,015150-
200x5020050235140x110105x8010,516x501622x50300553,165150-
