Monolithic cast iron wheel.

Tipo ruota: H

Extremely rigid and resistant to wear, it is recommended for particularly heavy use, where a high load capacity is required. The version with in through hole, is also used where an excellent resistance to heat is required, and can be assembled on supports, that are specifically designed to guarantee efficiency at high temperatures.

Sliding

Bush

Sliding

Balls bearing

Portata

180 ÷ 1000

Temperatura

-40°C ÷ +500°C

Questa ruota è compatibile con questi pavimenti:

esin cement

SF

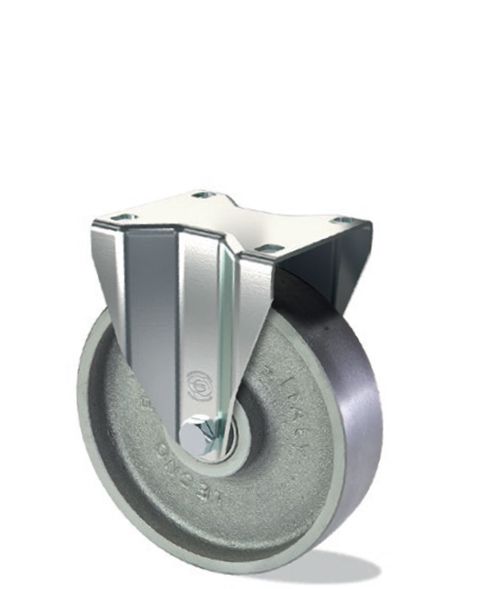

Monolithic cast iron wheel. Fixed bracket type S10, made of pressed steel, zinc plated.

Seleziona una delle seguenti varianti per creare il codice del prodotto

Diameters														Download
60x25	60	25	82	100x85	80x60	8,5	10/12x50	10-12	22x50	180	38	0,800	-
80x30	80	30	108	100x85	80x60	8,5	10/12x50	10-12	22x50	180	38	1,050	115
100x30	100	30	128	100x85	80x60	8,5	10/12x50	10-12	22x50	180	38	1,160	115
125x30	125	30	155	100x85	80x60	8,5	10/12x50	10-12	22x50	200	45	2,125	115
150x35	150	35	180	100x85	80x60	8,5	10/12x50	10-12	22x50	220	45	2,430	115
175x38	175	38	208	140x110	105x80	10,5	16x50	16	22x50	300	55	3,815	150
200x50	200	50	235	140x110	105x80	10,5	16x50	16	22x50	300	55	5,165	150
