Polyurethane wheel with cast-iron centre.

Tipo ruota: V

Wheel with mechanical cast iron hub, covered with cast polyurethane of hardness 95 Shore A. The sliding occurs on two ball bearings housed in specifically shaped casings, which ensure maximum efficiency during handling. The polyurethane layer gives an excellent resistance to impact and abrasion, as well as ensuring the integrity of the flooring even when moving heavy loads.

Sliding

Balls bearing

Portata

190 ÷ 3500

Temperatura

-20°C ÷ +80°C

Questa ruota è compatibile con questi pavimenti:

Tile

esin cement

GC

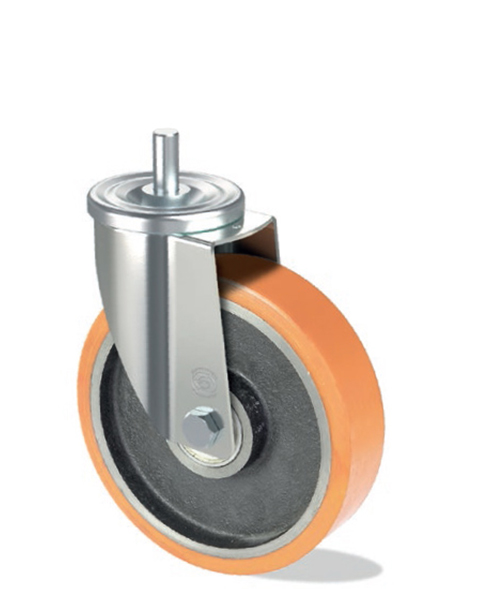

Polyurethane wheel with cast-iron centre. Swivel bracket type S10 with steel stem, made of pressed steel, zinc plated, double ball bearing swivel head.

Seleziona una delle seguenti varianti per creare il codice del prodotto

Diameters															Download
80x25	80	25	108	100x85	80x60	8,5	10/12x50	10-12	22x50	180	38	1,000	115	-
100x30	100	30	128	100x85	80x60	8,5	10/12x50	10-12	22x50	180	38	1,345	115	-
125x30	125	30	155	100x85	80x60	8,5	10/12x50	10-12	22x50	200	45	1,825	115	-
125x40	125	40	155	100x85	80x60	8,5	10/12x50	10-12	22x50	200	45	2,025	115	-
125x40.	125	40	156	140x110	105x80	10,5	16x50	16	22x50	300	55	2,730	150	-
150x35	150	35	180	100x85	80x60	8,5	10/12x50	10-12	22x50	220	45	2,130	115	-
150x40	150	40	180	100x85	80x60	8,5	10/12x50	10-12	22x50	220	45	2,630	115	-
150x40.	150	40	192	140x110	105x80	10,5	16x50	16	22x50	300	55	3,415	150	-
150x50	150	50	192	140x110	105x80	10,5	16x50	16	22x50	300	55	3,615	150	-
175x35	175	35	208	140x110	105x80	10,5	16x50	16	22x50	300	55	3,915	150	-
175x40	175	40	208	140x110	105x80	10,5	16x50	16	22x50	300	55	4,515	150	-
200x50	200	50	235	140x110	105x80	10,5	16x50	16	22x50	300	55	5,915	150	-
250x60	250	60	302	200x160	160x120	14,5	-	-	26x50	400	85	9,560	-	117

Crea il codice articolo

Il codice del prodotto è:
