Solid rubber wheel with polypropylene centre.

Tipo ruota: T

The high quality rubber ring, hardness 83 Shore A, guarantees easy use even in the presence of not perfectly smooth floors and small obstacles. The wheel centre is made of first choice polypropylene, which ensures flow and impact resistance. The sliding takes place directly on the wheel hub or on a roller bearing, depending on the model chosen.

Sliding

Bush

Sliding

Roller bearing, Inox roller bearing

Portata

50 ÷ 250

Temperatura

-20°C ÷ +60°C

Questa ruota è compatibile con questi pavimenti:

Tile

esin cement

Slatted floor

Asphalt floor

Dirt floors

Floor with chips

GP

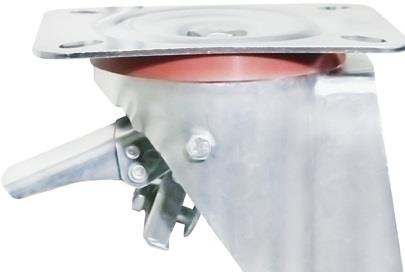

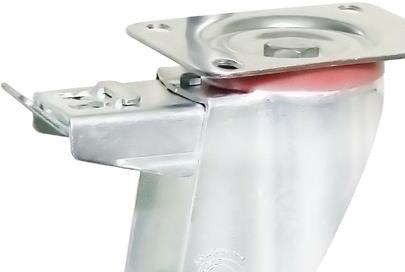

Solid rubber wheel with polypropylene centre. Swivel top plate bracket type S10, made of pressed steel, zinc plated, double ball bearing swivel head, dust protection.

Seleziona una delle seguenti varianti per creare il codice del prodotto

Diameters															Download
80x25	80	25	108	100x85	80x60	8,5	10/12x50	10-12	22x50	50	38	0,700	115	-
100x30	100	30	128	100x85	80x60	8,5	10/12x50	10-12	22x50	70	38	0,825	115	-
125x37	125	37,5	155	100x85	80x60	8,5	10/12x50	10-12	22x50	120	45	1,029	115	-
140x37	140	37,5	175	100x85	80x60	8,5	10/12x50	10-12	22x50	110	45	1,380	115	-
150x40	150	40	180	100x85	80x60	8,5	10/12x50	10-12	22x50	130	45	1,430	115	-
160x40	160	40	197	140x110	105x80	10,5	16x50	16	22x50	150	55	2,275	150	-
180x50	180	50	225	140x110	105x80	10,5	16x50	16	22x50	180	55	2,515	150	-
200x50	200	50	235	140x110	105x80	10,5	16x50	16	22x50	205	55	2,705	150	-
250x60	250	60	302	200x160	160x120	14,5	16x50	16	26x50	250	85	4,650	-	117

Crea il codice articolo

Il codice del prodotto è:
